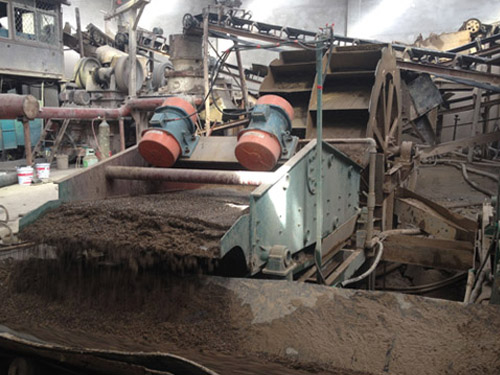

Solid liquid separating equipment for linear dewatering vibrating screen
Working principle：
The double electrode self synchronization technique is adopted, and a universal eccentric block and an adjustable amplitude vibrator are adopted. The utility model is mainly composed of a sieve box, a vibrator, a supporting system and a motor. Through the belt shaft driving two unconnected vibrator synchronous reverse operation, force superposition centrifugal force two eccentric quality generated along the direction of vibration, reverse centrifugal offset, thereby forming along the direction of vibration induced vibration of single screen box, artificial reciprocating linear motion, thus forming dehydration, desliming and recovery process.
Technical parameter：
| Model | Yield(t/h) | Mesh size （mm） | Screen material | Maximum particle size （mm） | Motor power (kw) | Overall dimension （mm) |
ZXS-1022 | 20-30 | 0.2-0.3 | Stainless steel screen, polyurethane screen | 1-6 | 2×1.5 | 2600×1500×1250 |
ZXS-1226 | 40-50 | 0.2-0.3 | 1-6 | 2×2.2 | 3000×1700×1350 | |
ZXS-1528 | 70-80 | 0.2-0.3 | 1-8 | 2×2.2 | 3200×2000×1450 | |
ZXS-1537 | 100-120 | 0.2-0.3 | 1-8 | 2×3.0 | 3800×2000×1500 | |
ZXS-1842 | 130-140 | 0.2-0.5 | 1-8 | 2×3.7 | 4440×2500×1700 | |
ZXS-2048 | 160-180 | 0.2-0.5 | 1-8 | 2×5.5 | 4800×2380×2100 | |
ZXS-2456 | 180-250 | 0.2-0.5 | 1-8 | 2×7.5 | 5600×2780×2450 |
Performance characteristics:
1. small noise, easy maintenance.
2.reasonable structure, durable.
3.dehydration effect is good, safe and reliable.
4. screening processing capacity, high screening efficiency.
5. light weight, easy disassembly and assembly, easy maintenance, no burst section spring.
